The SNAPLOC-15 metal roof panels are a versatile and durable roofing option suitable for both residential and commercial standing seam applications.
Their standing seam design ensures a modern and clean appearance. The use of a hidden fastener system enhances the aesthetics of the roof by concealing the fasteners beneath overlapping panels. This also improves the roof’s water resistance and reduces the risk of potential leaks. The panels and fasteners are engineered to resist high winds, ensuring that the roof remains intact and secure during severe weather events.

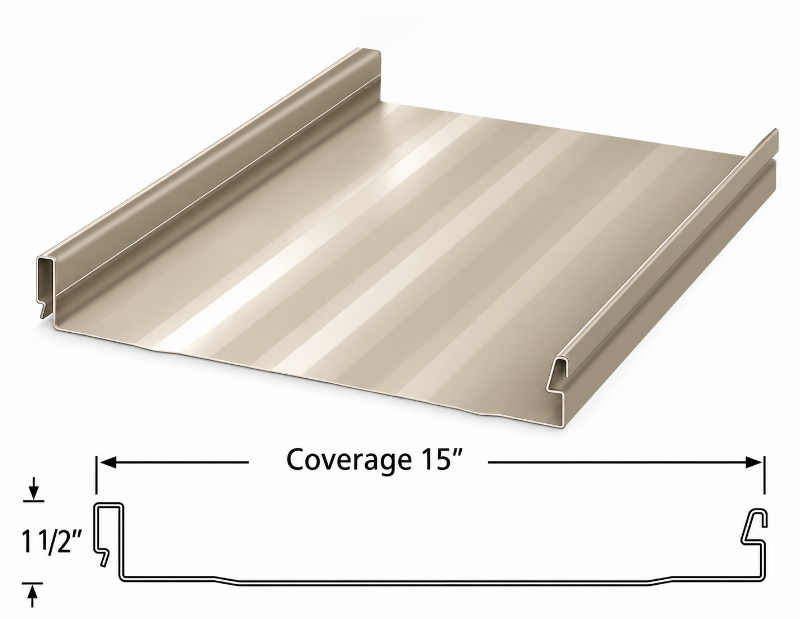

SNAPLOC-15 Standing Seam Metal Panels.
- 1 1/2” clip fasteners are Galvanized and Stainless Steel
- Width: 15″
- Rib height: 1½”
- Advised Minimum roof slope 2:12
- Panel attachment: Concealed Fasteners (1½” clip fastener)
- Gauge: 24 & 26
- Recommended in striations
- Finishes: Kynar500®, Galvalume Plus®
SNAPLOC-15 Color Card
Sunshine Textured Colors
SNAPLOC-15 accessories are available in steel and aluminum.
- Trim (max length 20ft)
- 1-½” clip fastener (aluminum)
- Ridge cap
- Valley
- Drip edge
- Gutters (max length 20ft, 4″ or 6″)
- Downspouts
Warranty Information
Duropon 70 PVDF Fluorocarbon Coil Coating (40 year)
Galvalume® Sheet 45-year Limited Warranty
Sunshine Textured WeatherXL and WeatherXL Crinkle Limited Warranty
Product Approvals
1 1/2″ Snap Lock, 24 Ga. Roof Panel over Plywood (18386.3 R4)
1 1/2″ Mechanical Lock, 0.032″ Aluminum 16″ Wide Roof Panel over Plywood (27705.1 R2)
1 1/2″ Mechanical Lock, 24 Ga. 16” Wide Roof Panel over Plywood (18386.2 R3)
26 Ga. Snap Lock 15 Roof Panel over 15/32” Plywood (46022.2 R1)
We offer fasteners, flashings, and additional supplies for your roofing project.
Find the materials and accessories you need to complete your installation.
